3D City Survey in Drachten, The Netherlands
07 July 2017
Two circle 'lines' over Drachten to produce an XCAM 3D model.
Capture
|
Camera Model
Aircraft
Date Flown
Plan Type
Plan Resolution
Plan Overlap
Plan Flying Height
Survey Duration
Images Captured
Area Covered
Calculated SQKM/Hour
Actual Ortho GSD
|
XCAM B (RGB/RGB)
Cessna F172
27th June 2017
WaldoAir Circular Path
3cm
n/a (Circular Path)
1,100 FT AGL
11m 07s
370
2.30 square kilometres
12.41
2.8cm
|
|
Processing
This circular project was processed in Skyline Photomesh using 5 networked computers (Intel i7 4785T, 16GB RAM, 460GB SSD). They were 'fused' together to do the Photo Preparation, Aerotriangulation, Tile Build and Product Output. Ground Control Points (GCPs) were used as they were available for this project area.
|
Photo Preparation
Aerotriangulation (AT)
Tile Build (Point Cloud & Mesh)
Product Output
|
0h 31m 01s
2h 22m 01s
42h 15m 47s
0h 24m 18s
|
|

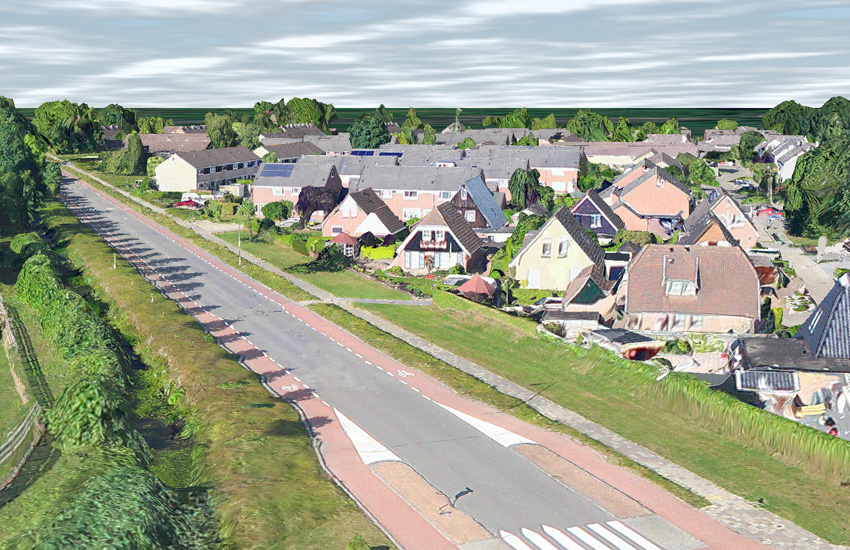

Product Showcase
Data Download
Raw Data
Download

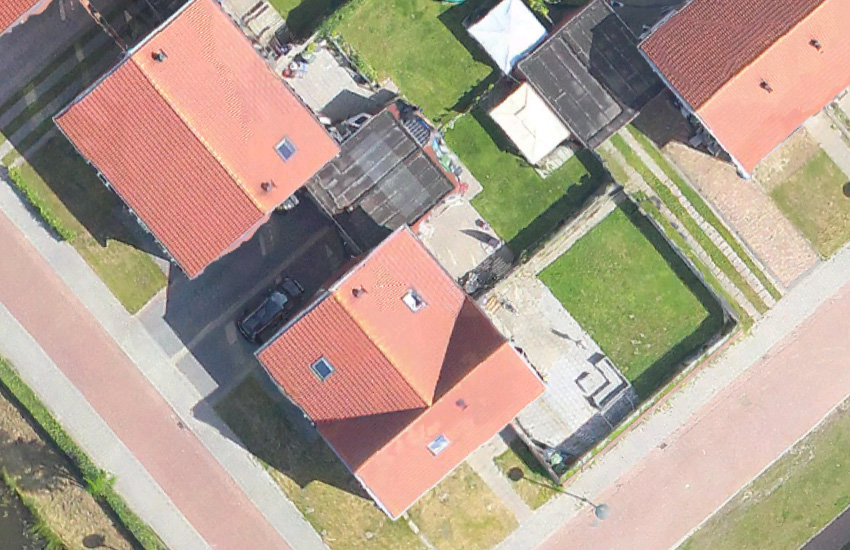

Orthophoto (ECW Format)
Download
3D Viewer Kit (Skyline TerraExplorer)
Download
Credits
Data captured by Kavel10. Data can be used for demonstration and evaluation purposes only. Raw or derived data not to be sold.
